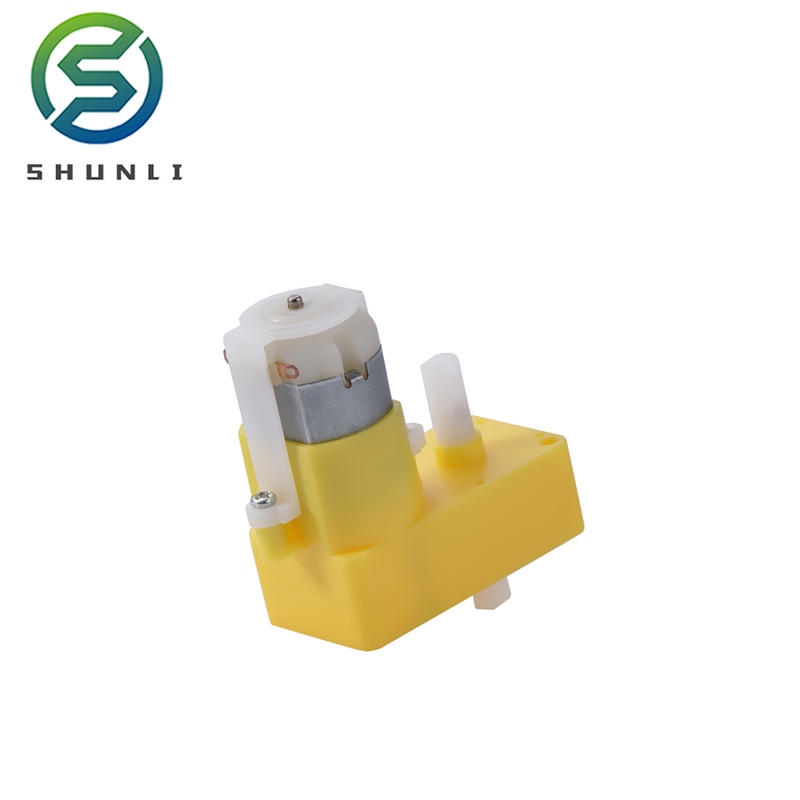

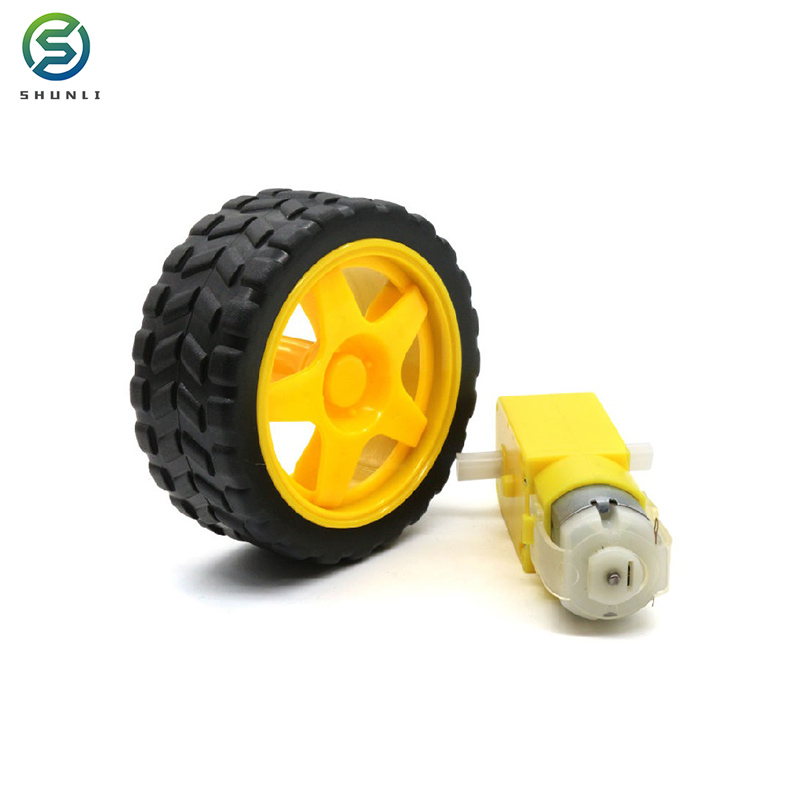

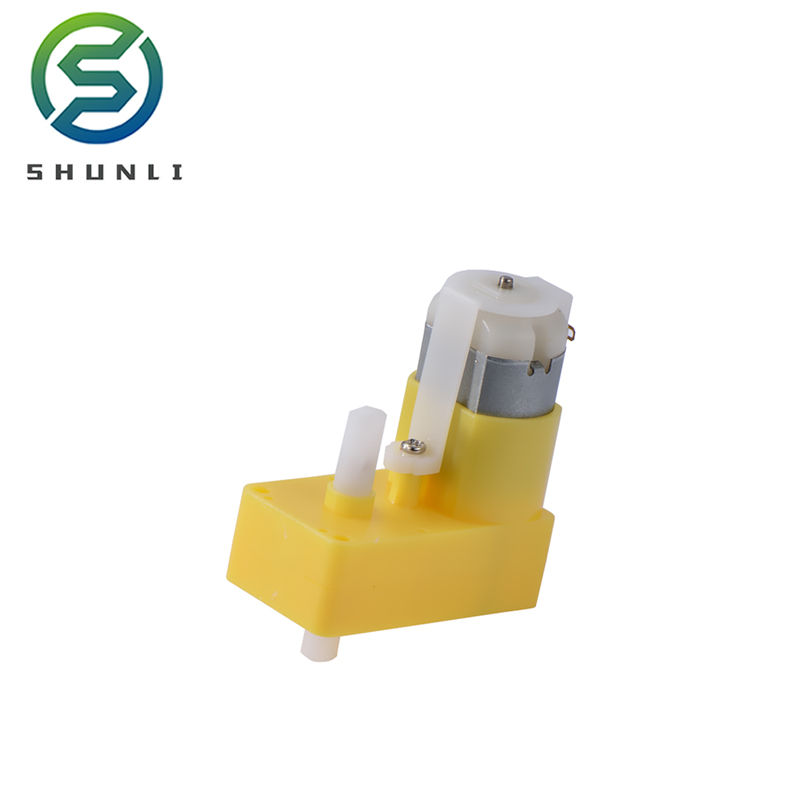

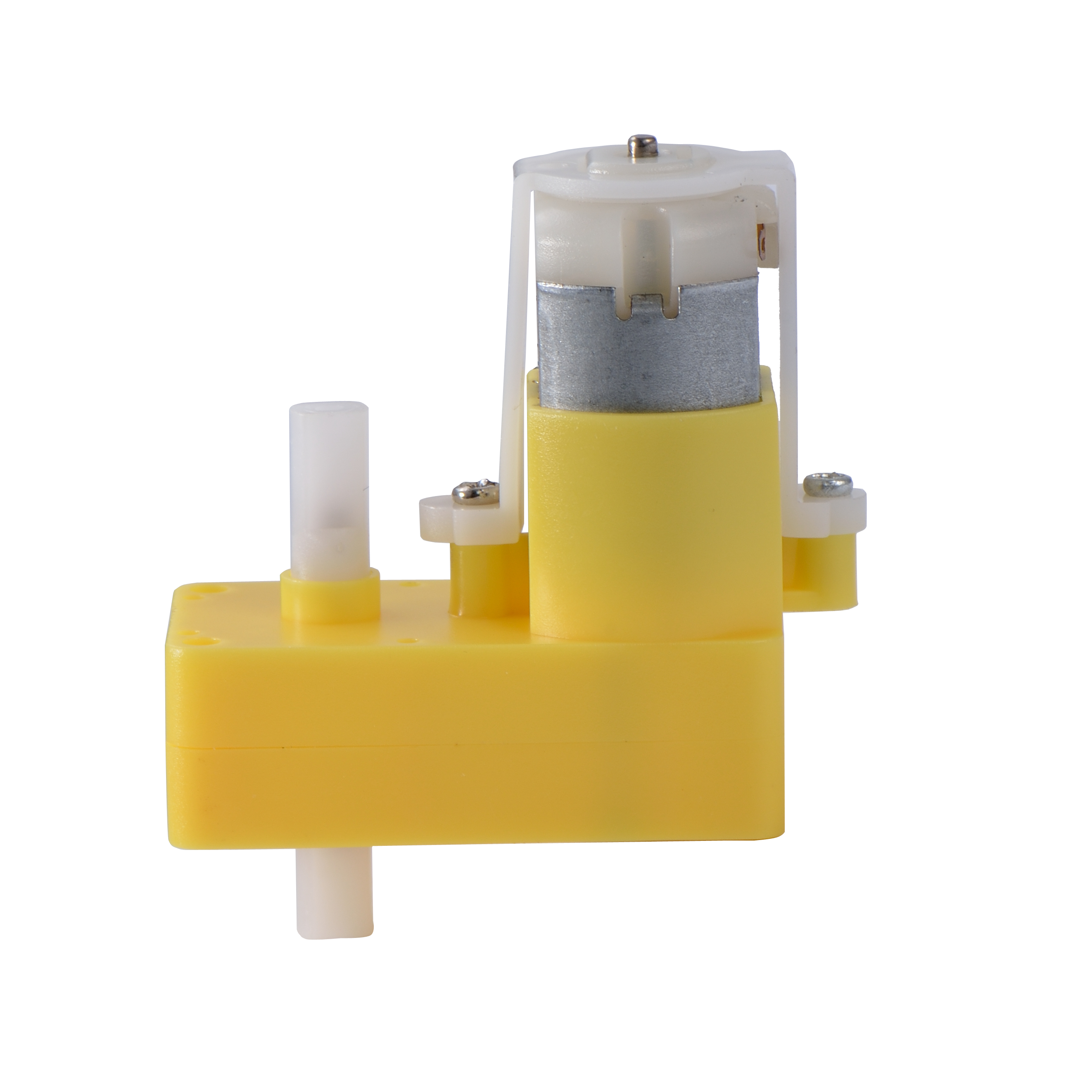

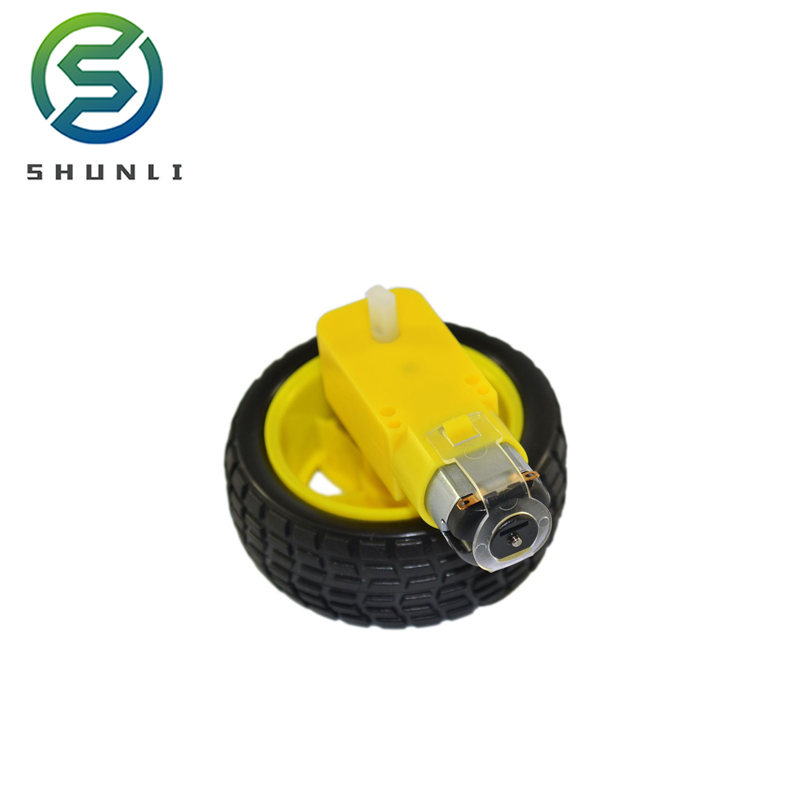

Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Product Description
Yellow DC Gear Motor with Plastic Wheels of Toy Car
Promotion
Characters
| Model | Voltage | No-load | Load | Stall | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Working Voltage | Rated voltage | Speed | Current | Speed | Current | Torque | Power output | Stall torque | Current | |||
| V | rpm | A | rpm | A | N.m | Kg.m | W | N.m | Kg.m | A | ||
| SGP01S-A130-14150-120 | 3-12.0V | 4.5 | 100 | 0.2 | 87 | 0.5 | 0.066 | 0.675 | 0.4 | 0.265 | 2.7 | 1.25 |
| SGP01S-A130-18100-220 | 3-12.0V | 3.0 | 50 | 0.2 | 40 | 0.3 | 0.120 | 1.233 | 0.6 | 0.393 | 4.003 | 2.15 |
Frequently Asked Questions
What is the working voltage range of these yellow DC gear motors?
The working voltage range for these motors is 3.0V to 12.0V, making them highly versatile for different power supply setups.
What are the rated voltage specifications for the SGP01S models?
The SGP01S-A130-14150-120 model is rated at 4.5V, while the SGP01S-A130-18100-220 model is rated at 3.0V.
What is the no-load speed performance of these gear motors?
Under no-load conditions, the 4.5V model operates at a speed of 100 rpm, and the 3.0V model operates at a speed of 50 rpm.
What is the maximum stall torque these motors can output?
The stall torque is 0.265 N.m (2.7 Kg.m) for the 4.5V model and 0.393 N.m (4.003 Kg.m) for the 3.0V model.
Are these DC gear motors suitable for smart toy cars?
Yes, these yellow DC gear motors are specifically designed with matched plastic wheels, making them ideal for DIY toy cars and small educational robotics platforms.
What is the current consumption when the motor stalls?
At stall, the current is 1.25A for the SGP01S-A130-14150-120 model and 2.15A for the SGP01S-A130-18100-220 model.
