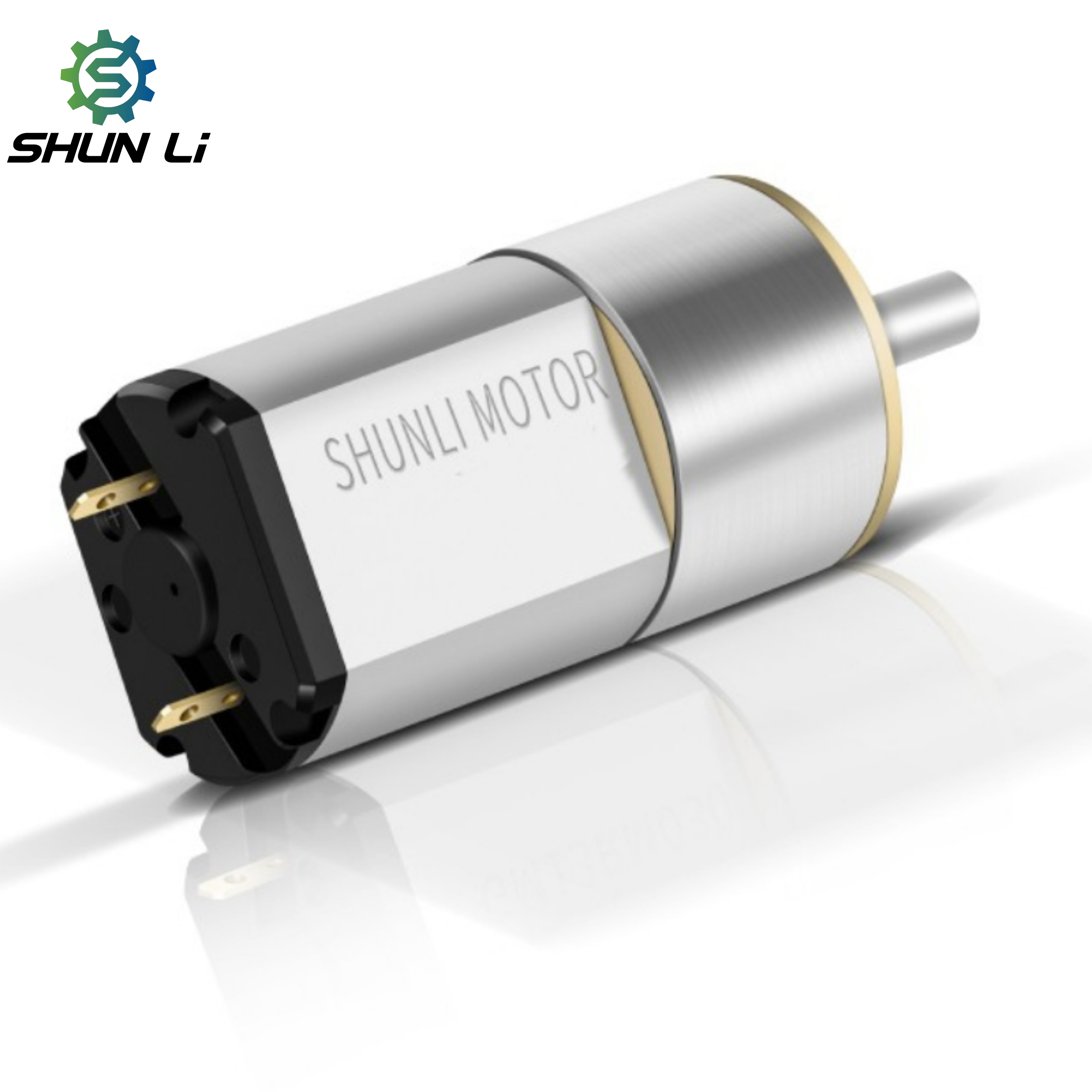

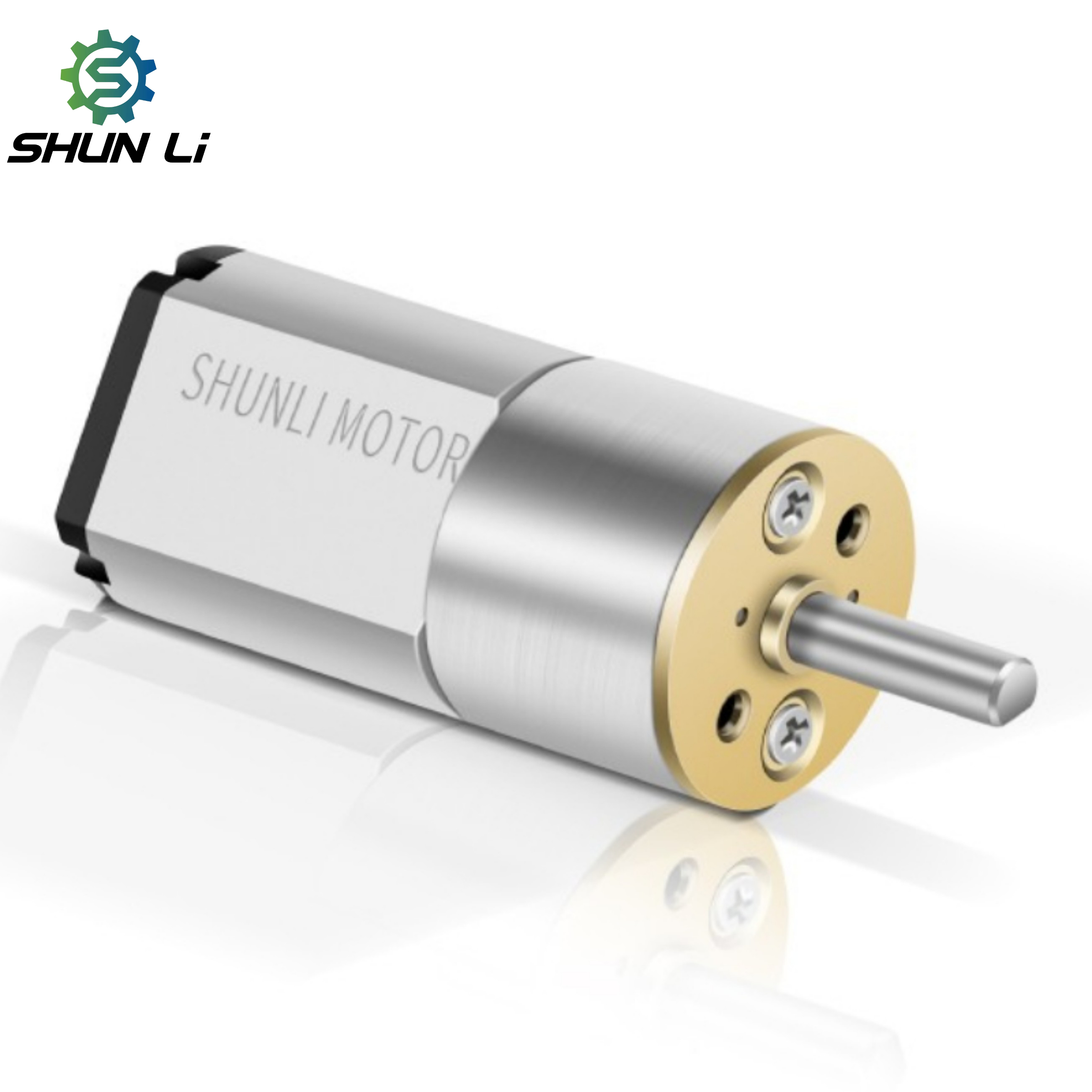

Shunli Custom 3.7 Volt 12v Dc Reduction Gear Micro Motor of High Torque Diameter of the Reduction Gear Box 13mm for Gas Valve
Product Description
Product Description
6 volt 12v dc reduction gear micro motor of high torque
Product Details
Motor Customized Specification, Please Contact Us.
Reference Drawing

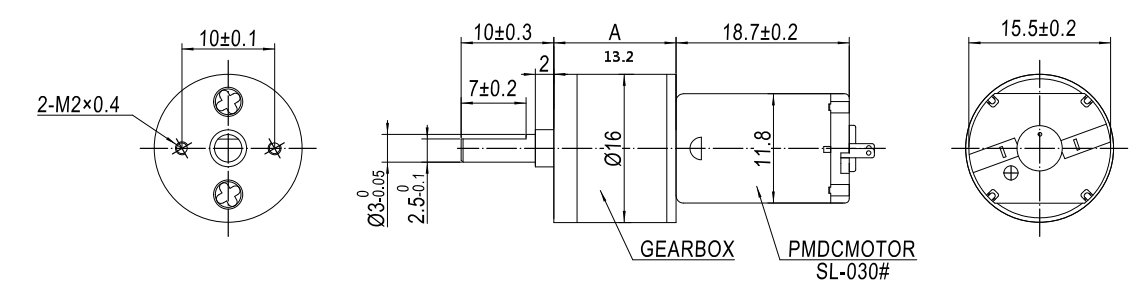

GM16AM030

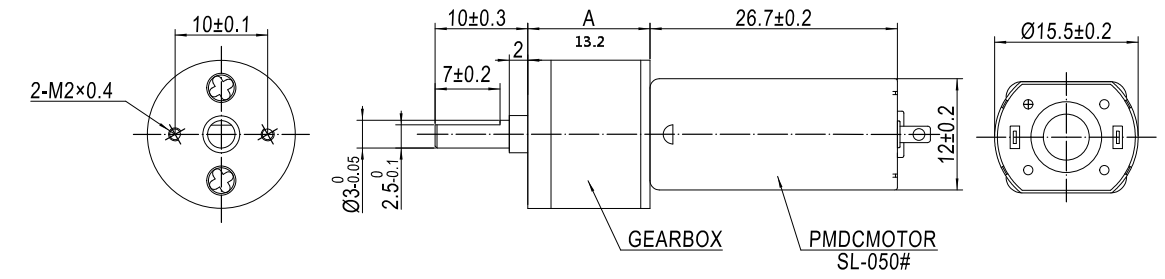

GM16AM050
Reference Datasheet
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | N.m / Kgf.cm | mA | N.m / Kgf.cm | |||
| GMP16M030-100K | 1 : 100 | 3.7 VDC | 100 | ≤ 80 | 72 | ≤ 300 | 0.03/0.3 | ≤ 700 | 0.11/1.1 |
| GMP16M050-300K | 1 : 300 | 3.7 VDC | 50 | ≤ 200 | 40 | ≤ 650 | 0.1/1.0 | ≤ 3000 | 0.55/5.5 |
Gearbox Technical Data
| Number of stages | 4 | 5 | 6 | 7 |
| Ratio | 25K / 30K / 35K / 42K | 70K / 85K / 100K / 119K | 143K / 169K / 200K / 239K / 285K | 300K / 400K / 568K / 800K |
| Gearbox Length "A" (mm) | 13.2 | 14.1 | 15.6 | 17.0 |
| Max. Rated Torque | 0.6 Kgf.cm | 1.0 Kgf.cm | 1.5 Kgf.cm | 2.0 Kgf.cm |
| Max. Gear Broke Torque | 1.5 Kgf.cm | 3.0 Kgf.cm | 4.0 Kgf.cm | 5.0 Kgf.cm |
| Gearbox Efficiency | 60%~70% | 55%~60% | 50%~55% | 45%~50% |
Customer Evaluation
Certifications
Why Choose Us
1. Company Experience
We are a factory specialized in producing motors for more than 14 years. Our professional R&D team and mature management will bring you a pleasant business experience.
2. Quality Control
In order to confirm quality, every step from receiving materials to shipment is carefully checked. Quality is the basis of our development.
3. Our Services
We are a gold seller in possession of high credibility.
100% on-time delivery rate ensures your product arrives timely.
Samples will be produced within 2 weeks. Customized samples will be produced within 3 weeks.
Timely reply: your message will be replied to within 2 hours.
Frequently Asked Questions
Q1: Are you a trading company or manufacturer?
A: We're a factory. We specialize in micro dc motor and dc gear motor for more than 14 years.
Q2: What is the payment term for a new customer?
A: We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer also can pay with PayPal or TT etc.
Q3: I can't find a suitable motor on your website, can you customize the motor for me?
A: Yes, we can customize a suitable motor according to our customer's requirements.
Q4: Do you have certificates for the motors?
A: Yes, we have CE, FCC, ISO, etc. If you have other certificate requirements, we can apply for them for you.
Q5: How is your Quality Control?
A: We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor, such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.
Q6: How long does it take to produce product samples?
A: Standard samples will be produced within 2 weeks. Customized samples will be produced within 3 weeks.
