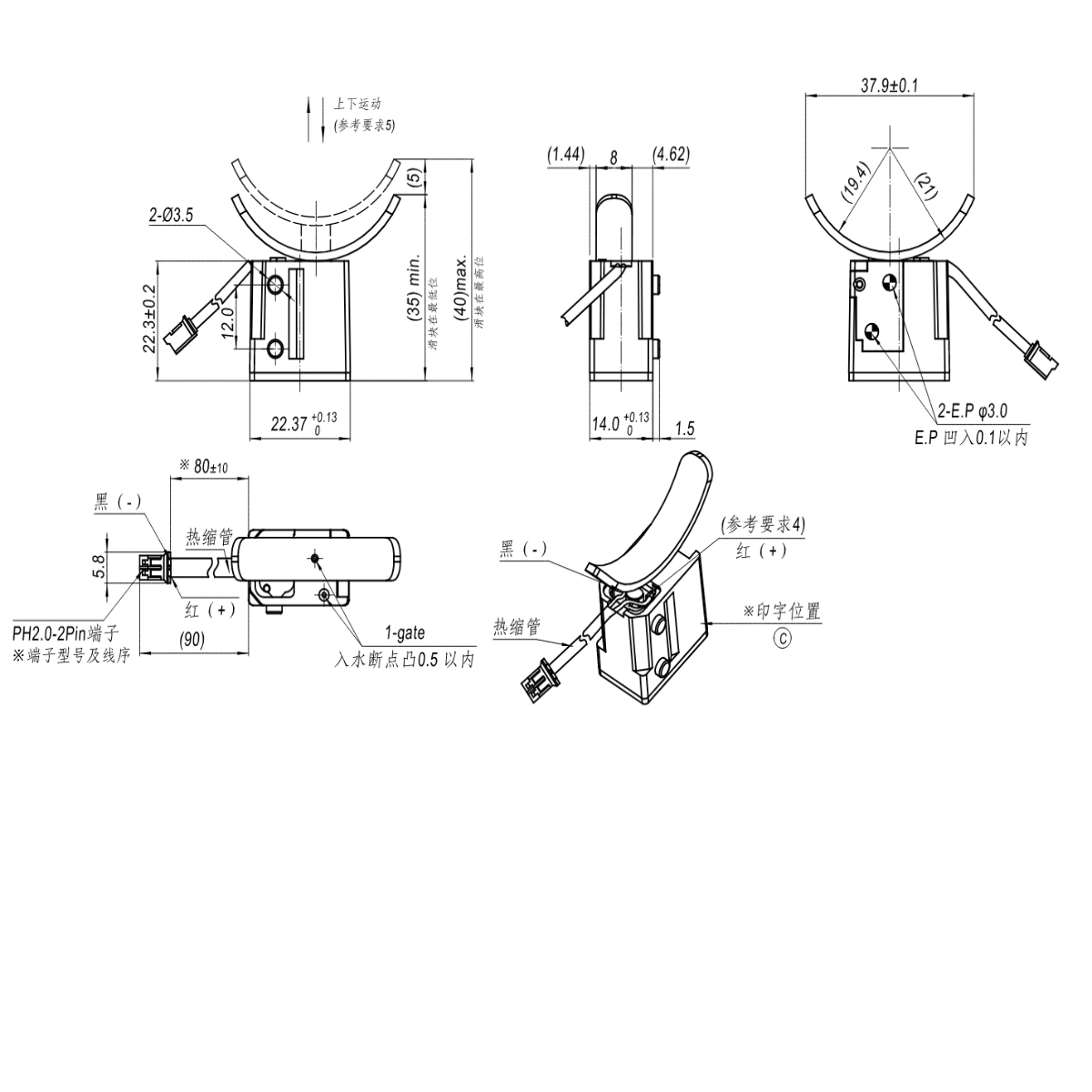

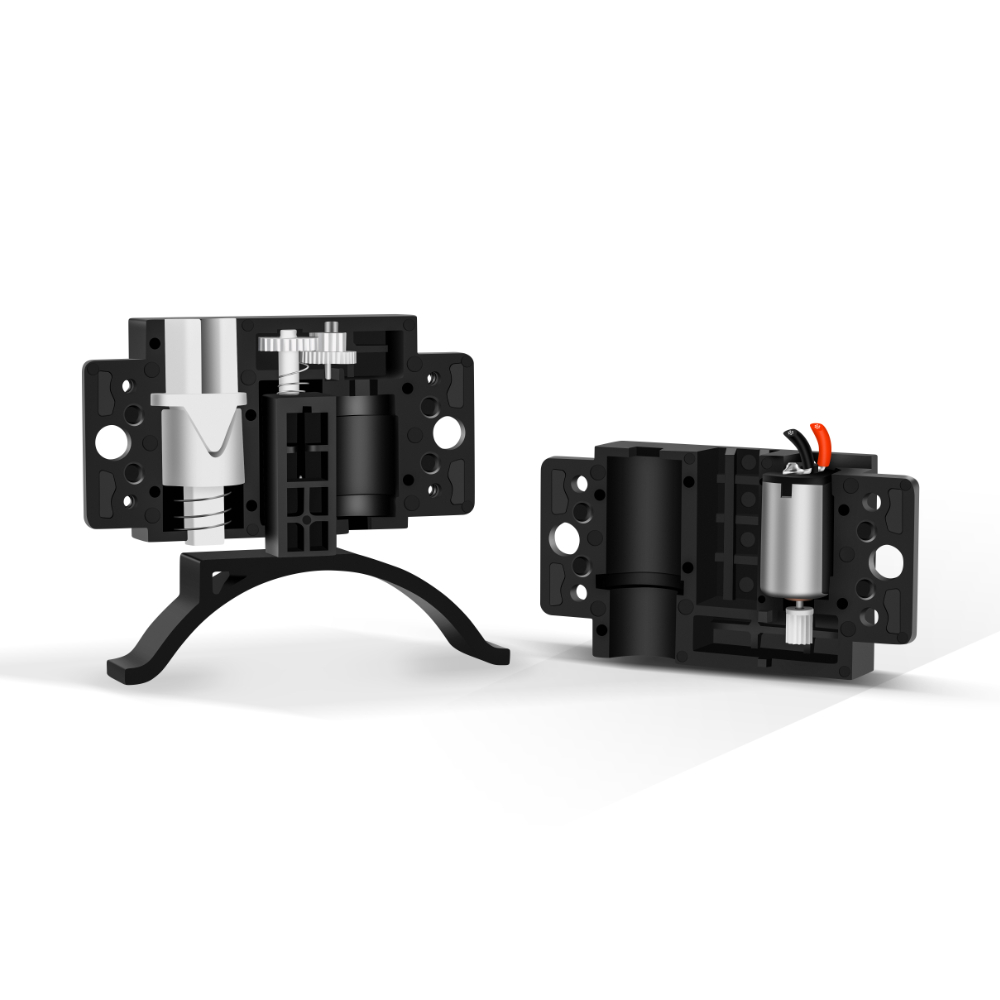

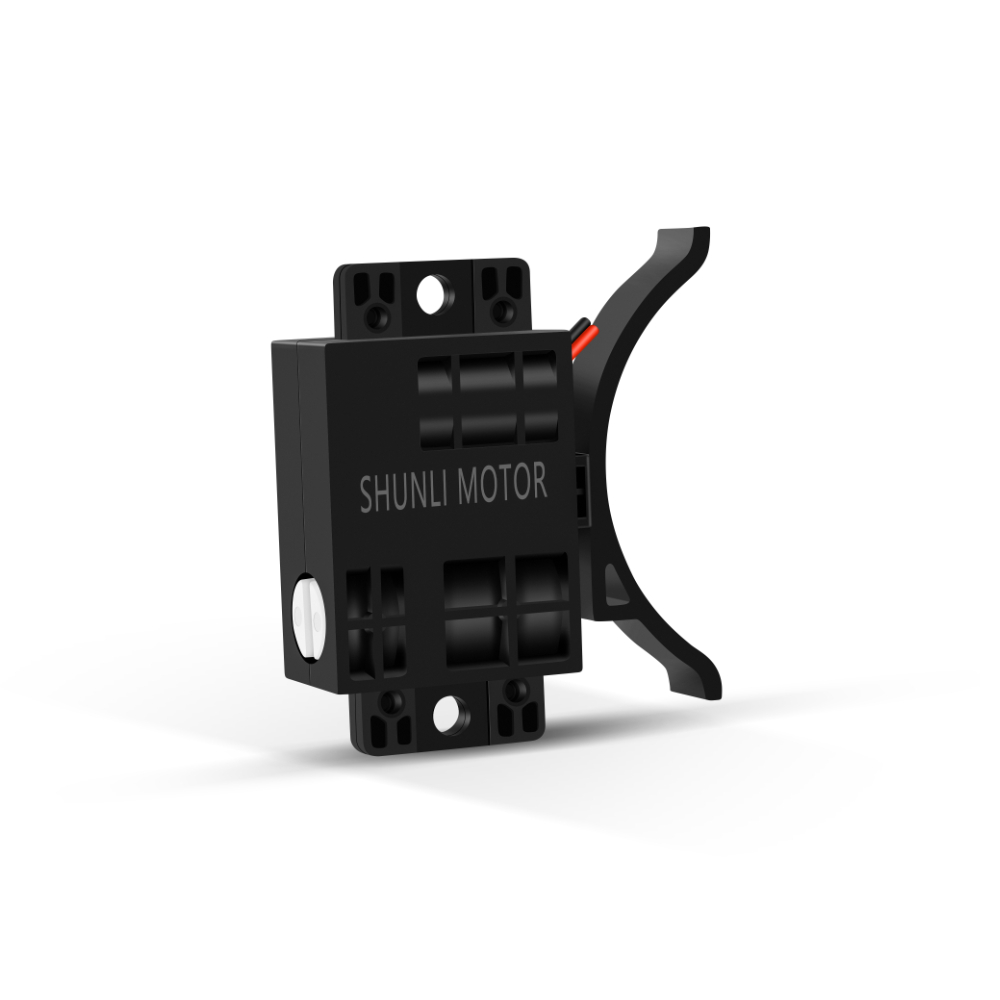

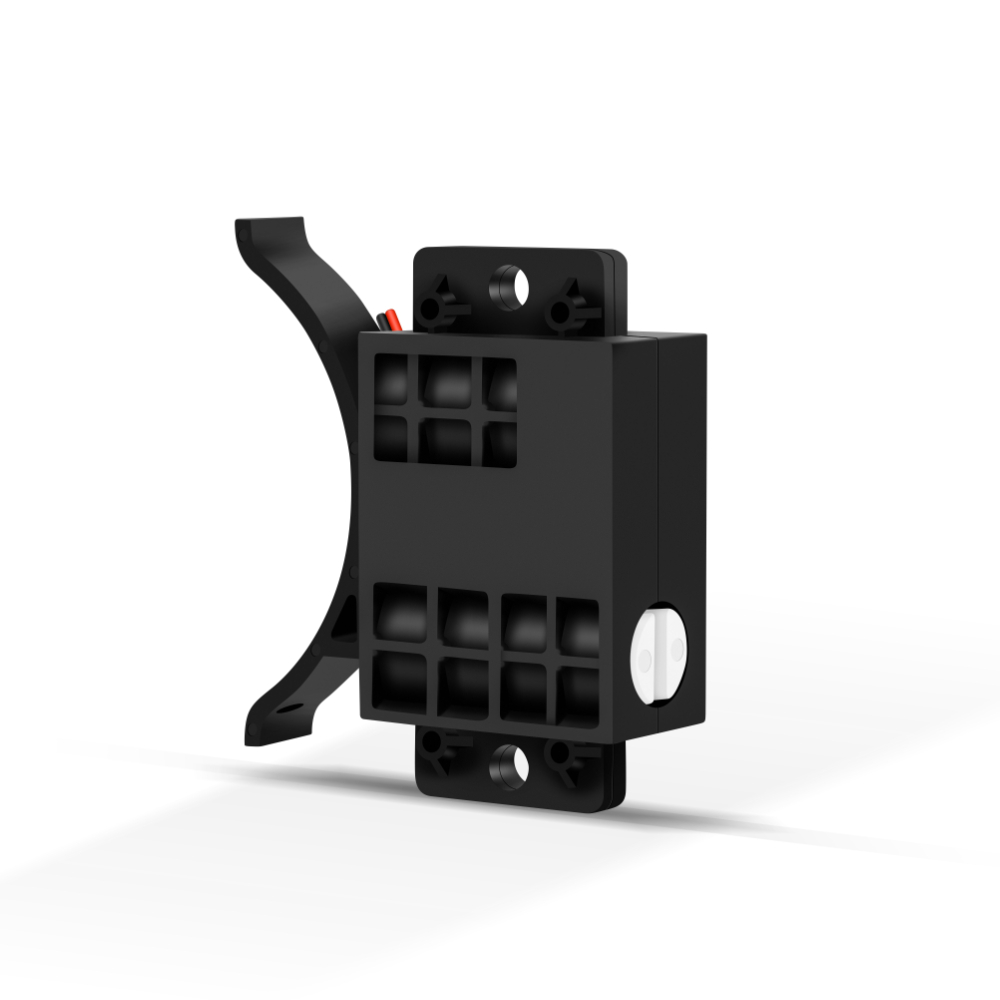

Shunli Vibration Dc Gear Motor 3V 6V 12V 1.4-1.6A 65RPM 75RPM 85RPM Hight Torque Coin Dc Gear Motor for Smart Lock
Product Description
Vibration DC Gear Motor 3V 6V 12V 1.4-1.6A 65RPM 75RPM 85RPM 3KG.CM High Torque Coin DC Gear Motor For Lock
Promotion
Product Description
Gearbox Technical Data
| Ratio | 241k |
|---|---|
| Max. Rated Torque | 1.5~2.0 Kgf.cm |
| Max. Gear Breaked Torque | 4~5 Kgf.cm |
| Gearbox Efficiency | 45%~60% |
Gearmotor Technical Data
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | N.m / Kgf.cm | mA | N.m / Kgf.cm | |||
| GM2240 | 1 : 241 | 4.5 VDC | 52 | ≤ 50 | 40 | ≤ 120 | 18 / 180 | ≤ 350 | 0.18 / 0.18 |
| 58 | ≤ 65 | 50 | ≤ 130 | 24 / 240 | ≤ 680 | 0.2 / 2.0 | |||
| 68 | 75 | 56 | ≤ 140 | 26 / 260 | ≤ 750 | 0.22 / 2.2 | |||
PMDC MOTOR Technical Data
| PMDC MOTOR Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | mN.m / gf.cm | |||
| SL-N20 | 04510500 | 4.5 VDC | 10500 | ≤ 30 | 8250 | ≤ 80 | 0.2 / 2.0 | ≤ 300 | 1.05 / 10.5 |
| 04514000 | 4.5 VDC | 14000 | ≤ 40 | 12000 | ≤ 130 | 0.25 / 2.5 | ≤ 680 | 1.5 / 15 | |
| 04516500 | 4.5 VDC | 16500 | ≤ 50 | 13500 | ≤ 160 | 0.25 / 2.5 | ≤ 750 | 1.8 / 18 | |
Application
Customer Evaluation
Certifications
Why Choose Us
Professional Manufacture
We are a factory specialized in producing motors for more than 14 years. Our professional R&D team and mature management will bring you a pleasant purchasing experience.
Strict Quality Control
In order to confirm quality, every step from raw material reception to final shipment is carefully checked. Quality is the foundation of our development.
Frequently Asked Questions
QAre you a trading company or a manufacturer?
We are a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
QWhat is the payment term for a new customer?
We can establish an Online Assurance Order for our new customers, which supports online payment via Credit Card, Visa, etc. Customers can also pay with PayPal or T/T.
QCan you customize the motor if I cannot find a suitable one on the website?
Yes, we can customize a suitable motor according to our customers' specific requirements.
QDo you have certifications for the motors?
Yes, we have CE, FCC, ISO, etc. If you have other certification requirements, we can apply for them for you.
QHow do you manage quality control?
We have professional inspection staff on every production line process. After finishing the motor assembly, we use specialized quality testing machines, such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise testers.
QWhat is the gearbox efficiency and rated torque?
The gearbox efficiency ranges between 45% and 60%. The maximum rated torque is 1.5~2.0 Kgf.cm, and the maximum gear breaked torque is 4~5 Kgf.cm.
