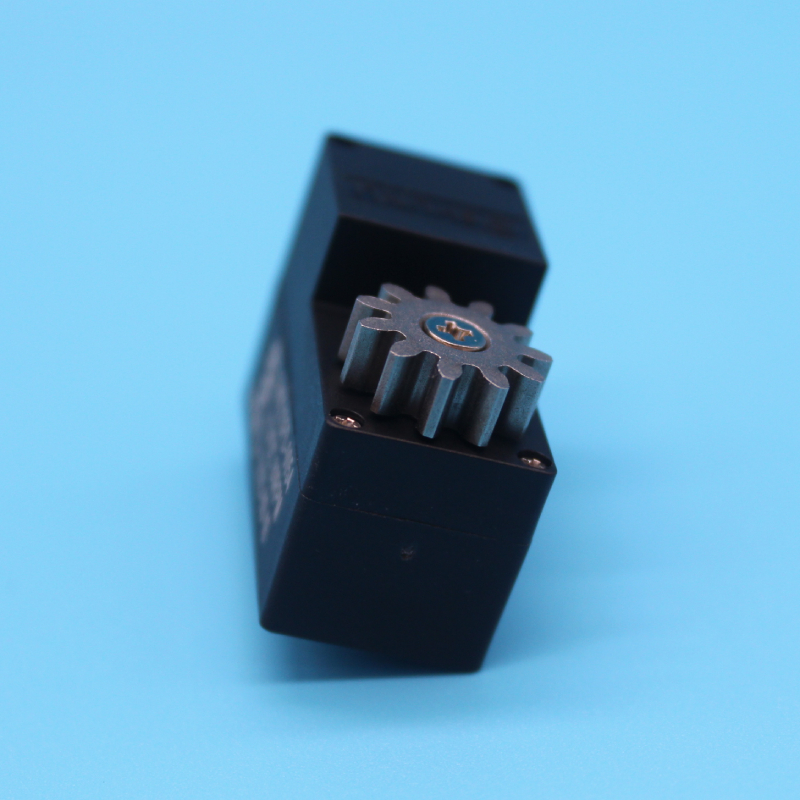

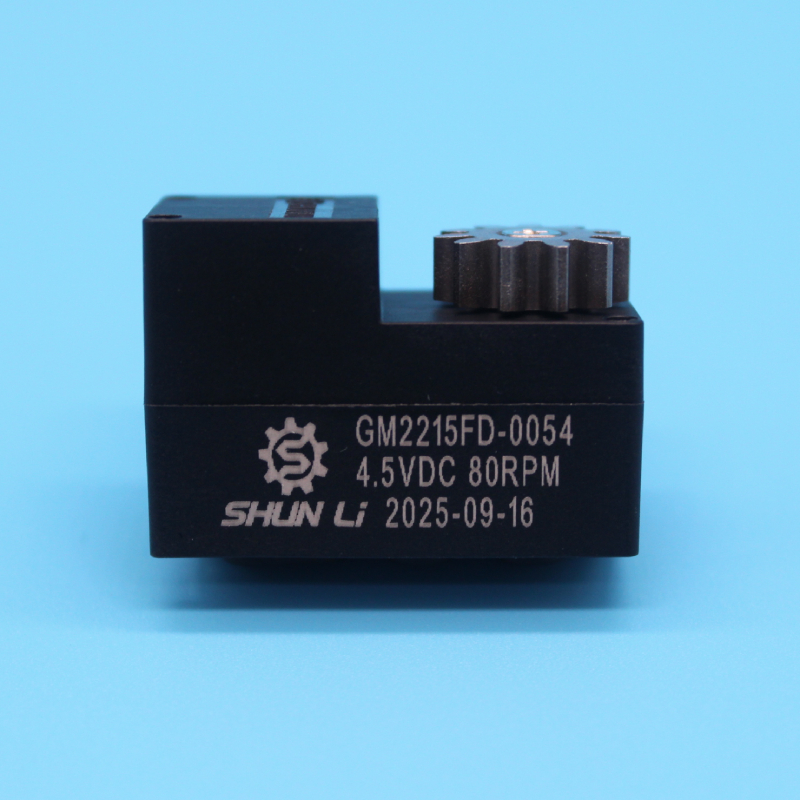

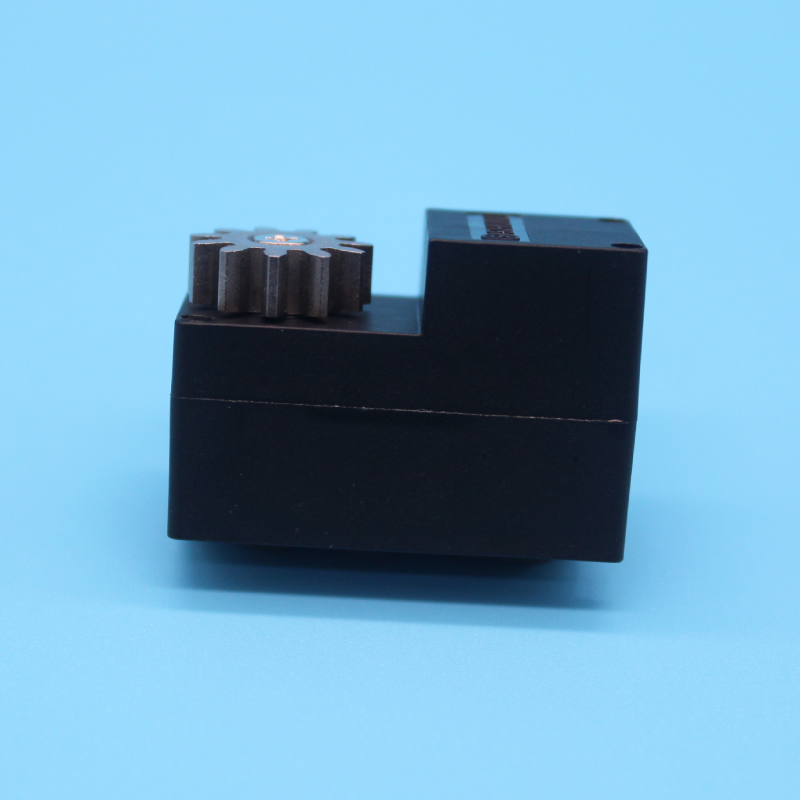

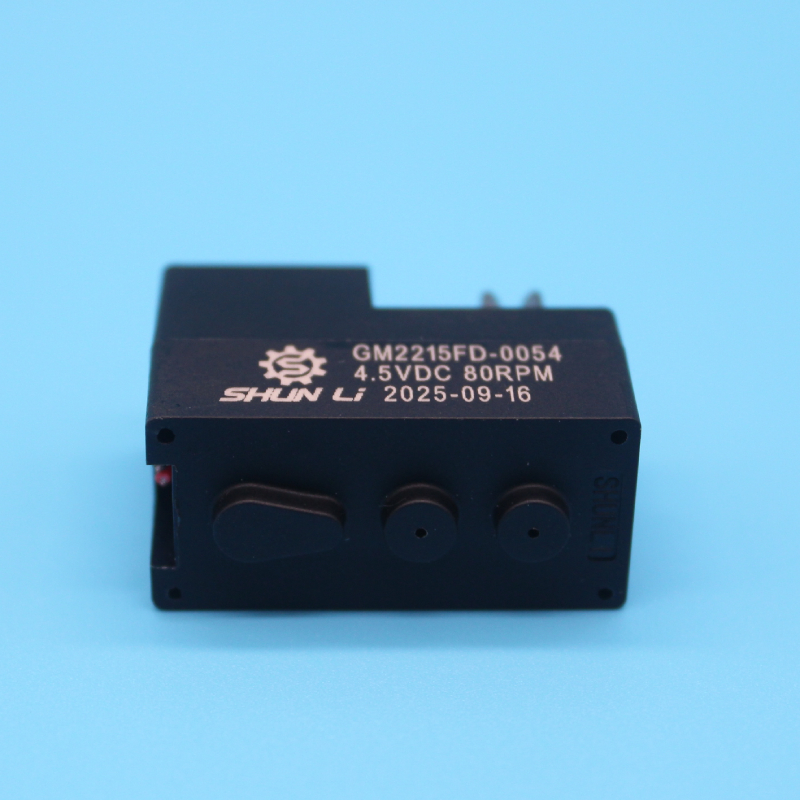

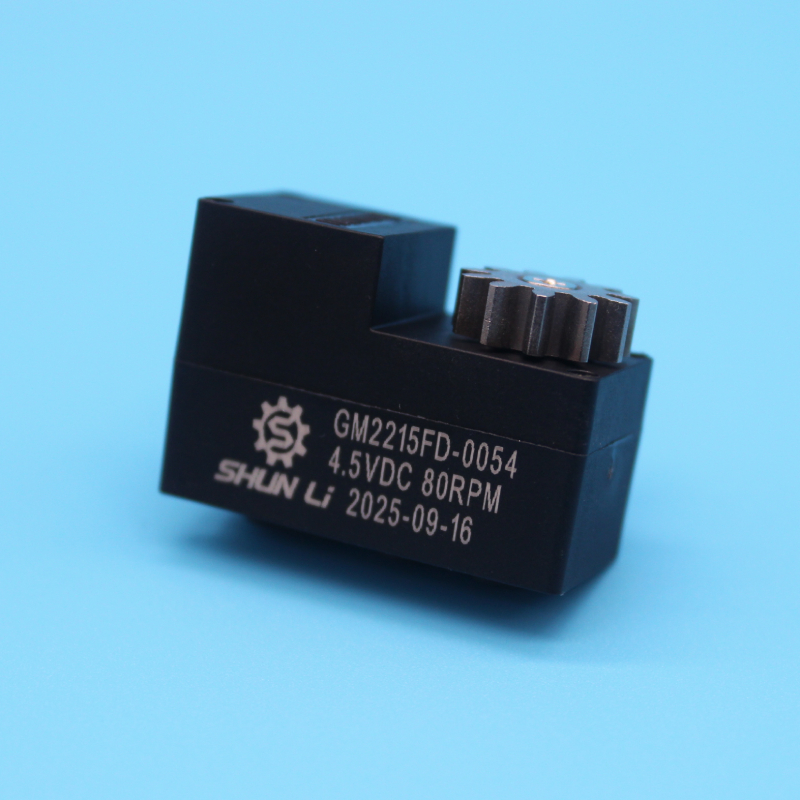

Shunli Motor 2215 Smart Lock Motor Steering Gear Automatic Door Lock Micro Motor Gearbox Reduction of Smart Lock
Product Description
Product Description

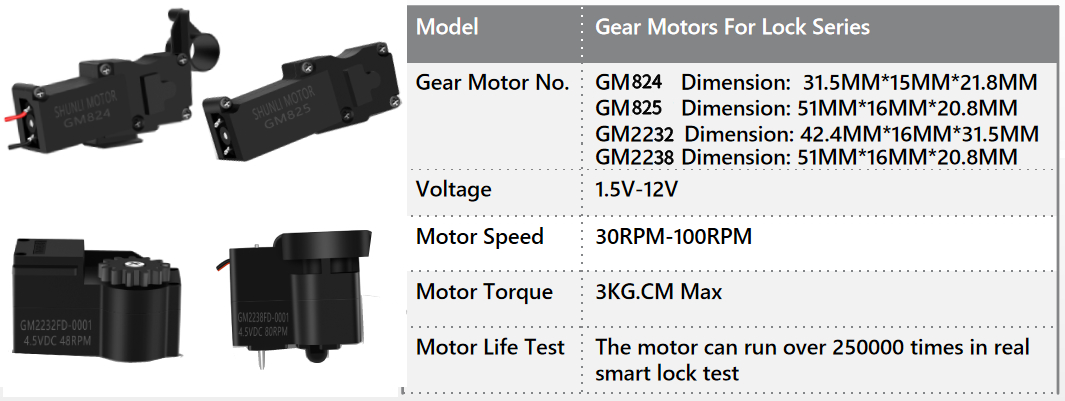

Smart Lock Motor
2215 smart lock motor steering gear automatic door lock micro motor gearbox reduction motor
Motor Customized Specification

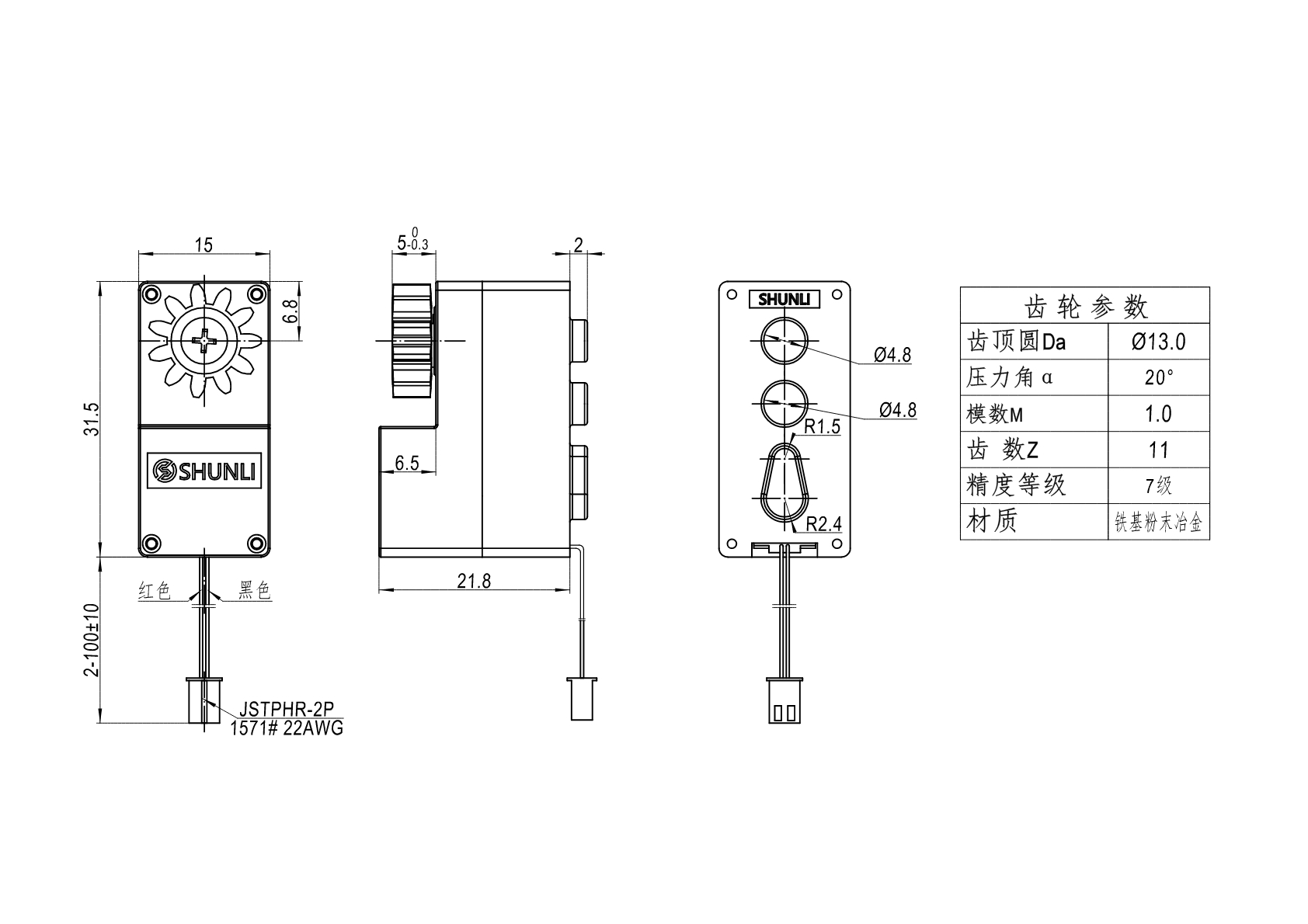

Reference Drawing: GM2215

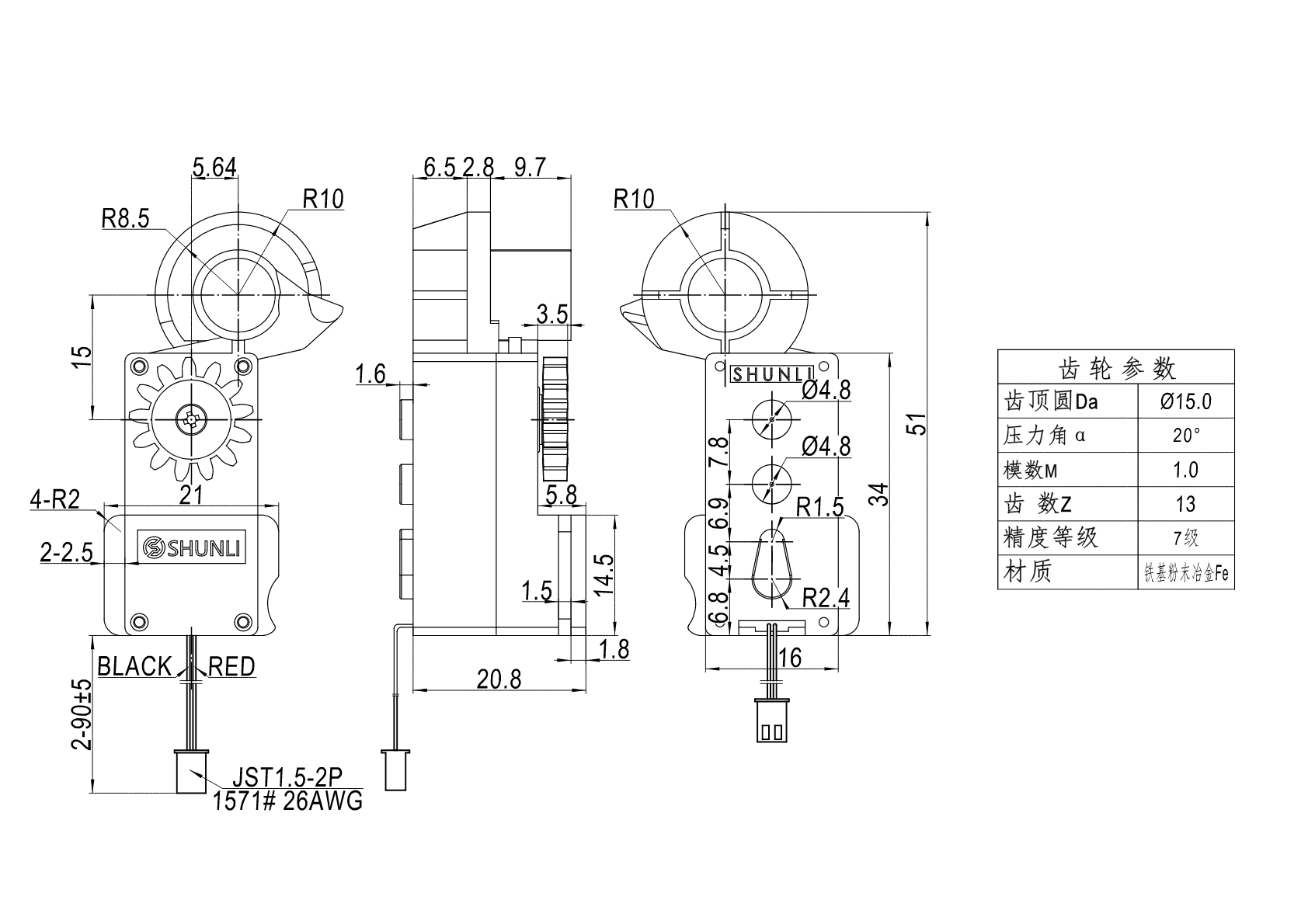

Reference Drawing: GM2219
Reference Datasheet
Gearbox Technical Data
| Ratio | 199K / 241K / 265K |
|---|---|
| Max. Rated Torque | 1.5 ~ 2.5 Kgf.cm |
| Max. Gear Breaked Torque | 4 ~ 5 Kgf.cm |
| Gearbox Efficiency | 45% ~ 60% |
Gearmotor Technical Data
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed (RPM) | Current (mA) | Speed (RPM) | Current (mA) | Torque (mN.m / gf.cm) | Current (mA) | Torque (N.m / Kgf.cm) | |||
| GM2215FMN20-199K | 1 : 199 | 4.5 VDC | 52 | ≤ 50 | 40 | ≤ 120 | 18 / 180 | ≤ 350 | 0.18 / 1.8 |
| GM2222FMN20-230K | 1 : 230 | 58 | ≤ 78 | 49 | ≤ 135 | 24 / 240 | ≤ 450 | 0.2 / 2.0 | |
| GM2219FMN20-265K | 1 : 241 | 58 | ≤ 65 | 50 | ≤ 130 | 24 / 240 | ≤ 680 | 0.2 / 2.0 | |
| GM2219FMN20-265K | 1 : 241 | 62 | ≤ 75 | 51 | ≤ 140 | 35 / 350 | ≤ 750 | 0.22 / 2.2 | |
Related Products & Catalog

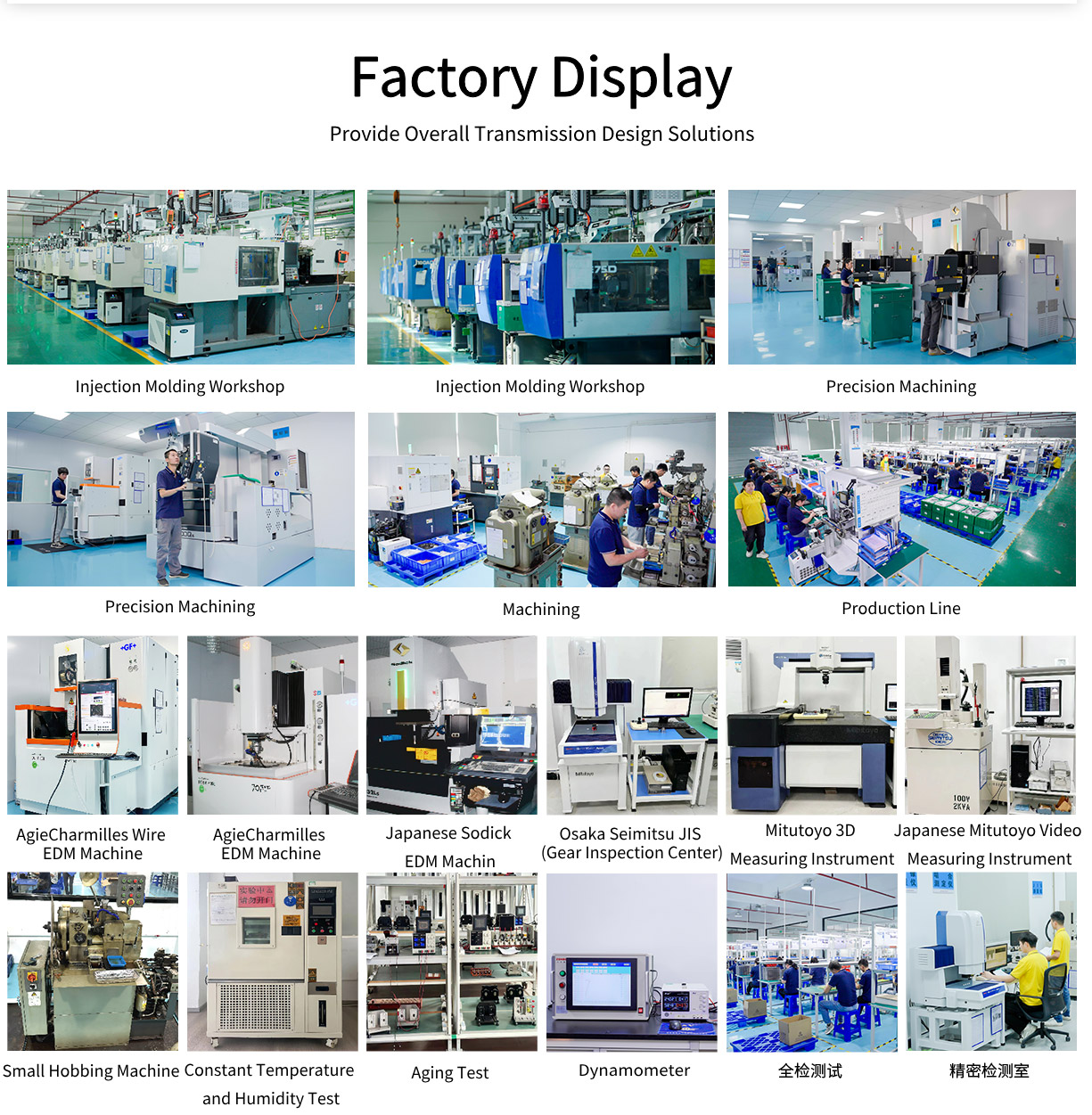

Production & Quality Control
FAQ
1
Are you a trading company or a manufacturer?
We are a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
2
What is the payment term for a new customer?
We can draw up a secure online assurance order, which allows payment via credit card (Mastercard, Visa, etc.), PayPal, or T/T.
3
If I cannot find a suitable motor on your website, can you customize the motor for me?
Yes, we can customize a suitable motor according to our customers' specific application requirements.
4
Do you have certifications for the motors?
Yes, we have CE, FCC, ISO, and other relevant certifications. We can also apply for additional certifications if required.
5
How do you handle quality control?
We have professional inspection staff at every stage of the production process. Once the motor is assembled, it undergoes comprehensive testing using equipment such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
6
Can we request samples for testing before committing to bulk orders?
Yes, samples are available for evaluation and testing. We recommend customizing the specifications to match your exact application parameters prior to sample fabrication.
