6v 12v 24v Micro Motor Electric Car Motor Micro Dc Motor
Product Description
Product Description

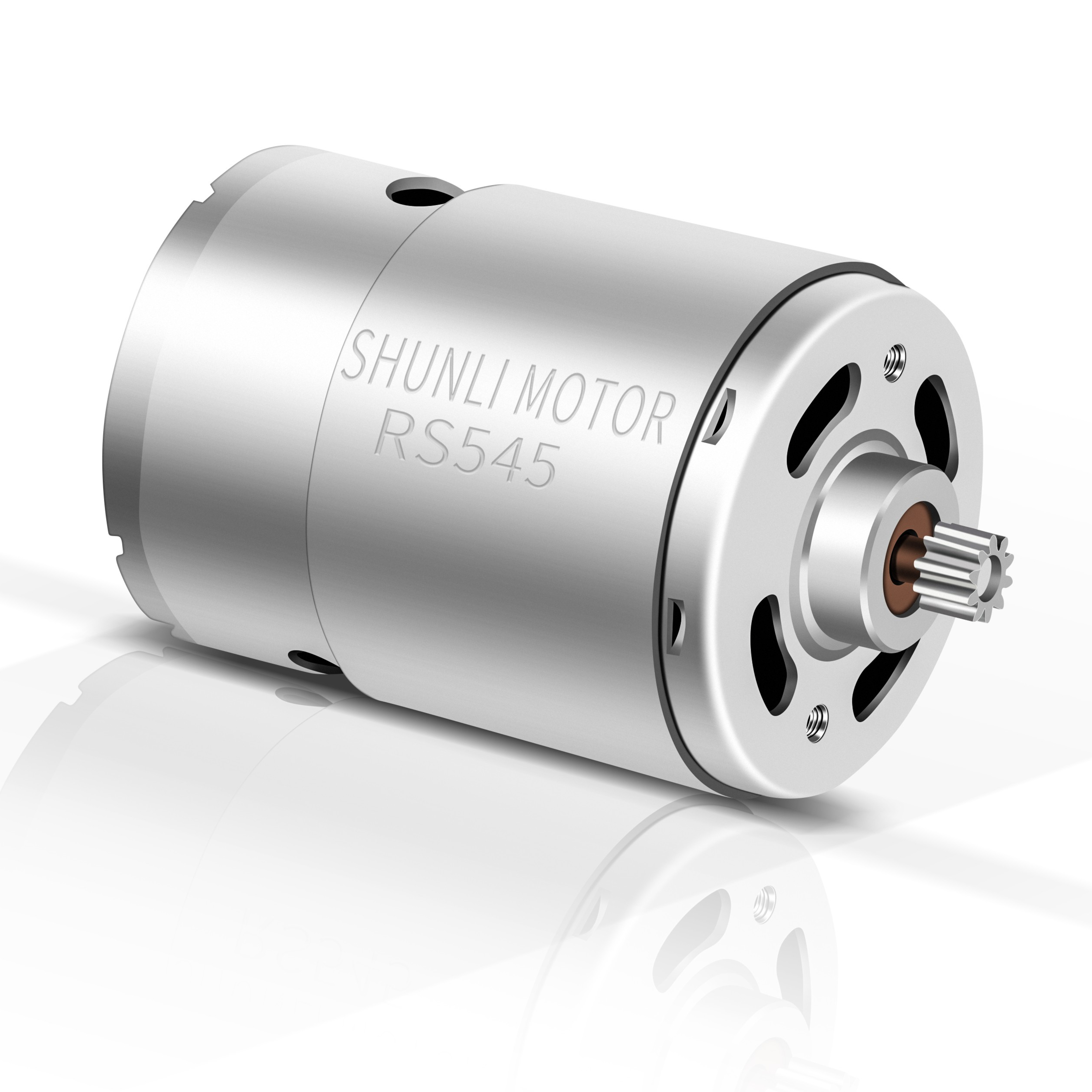

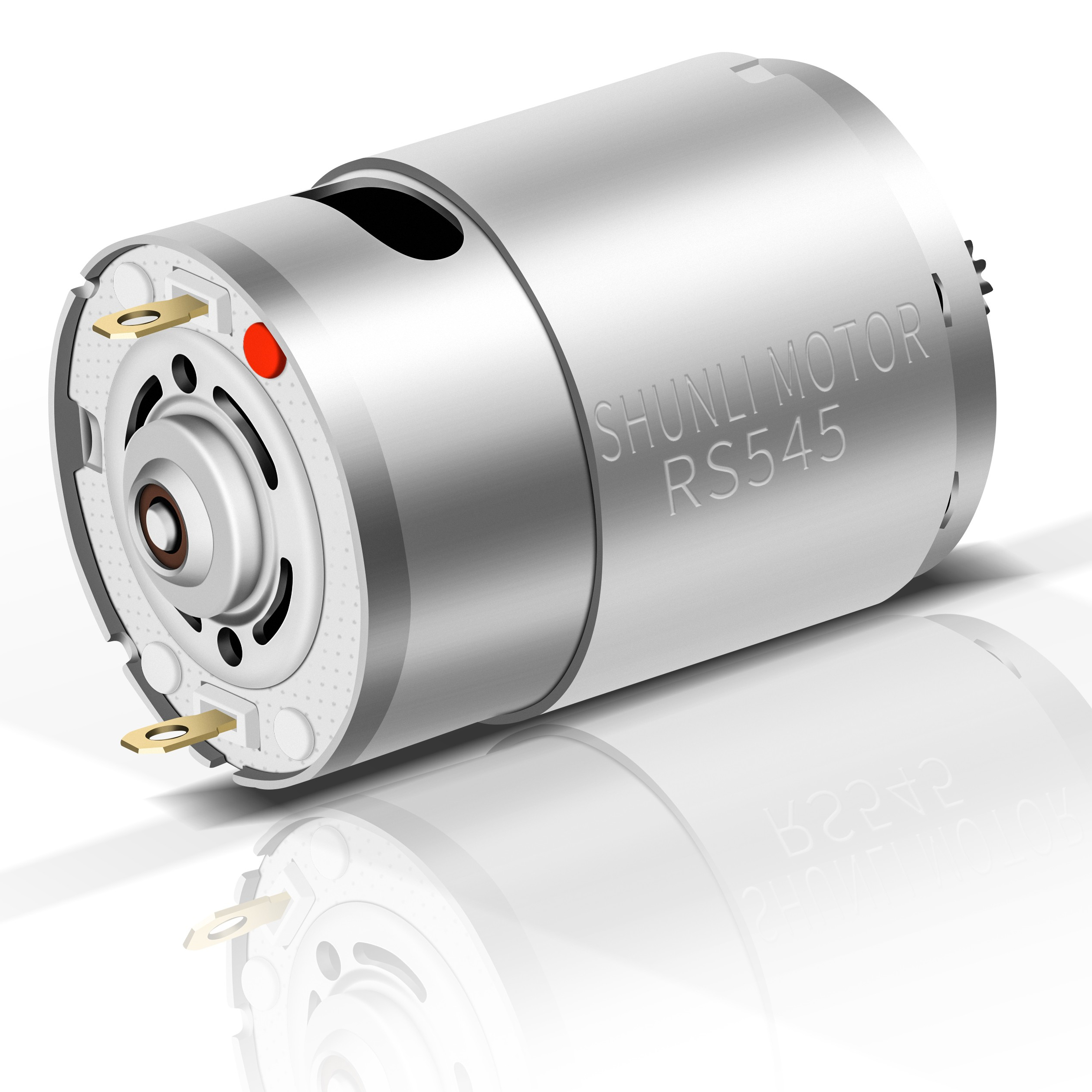

6v 12v 24v micro motor electric car motor micro dc motor
Product Details
Motor Customized Specification

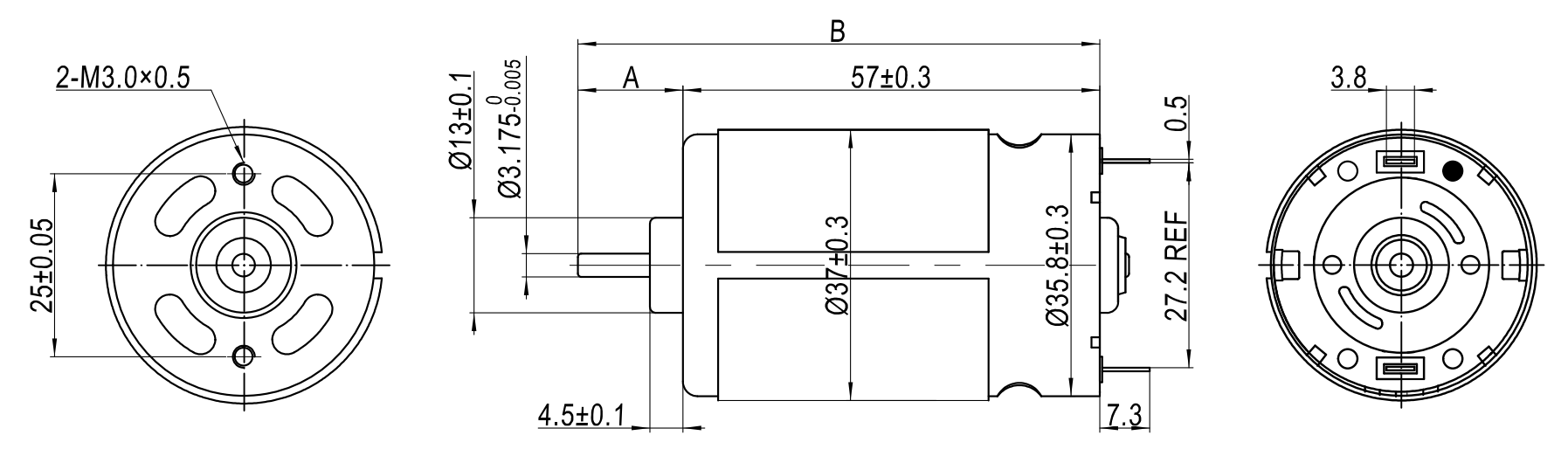

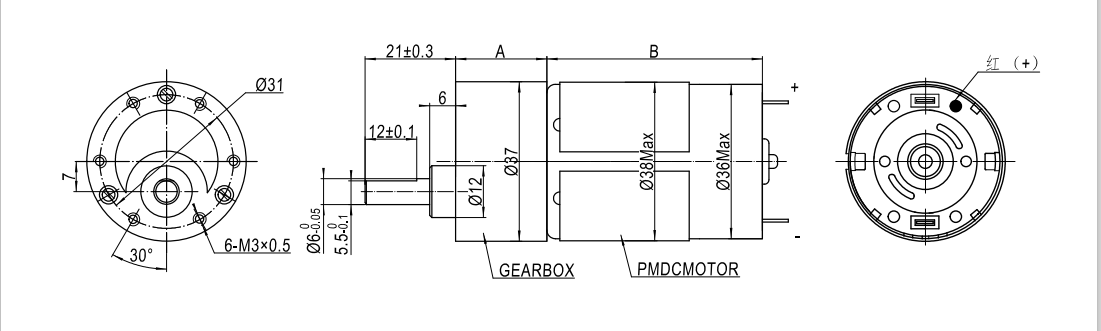

Reference Drawing
------ RS - 545 A
------ RS - 555 A
------ RS - 575 A
The length of shaft can be customized
Reference Datasheet
| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage(V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| RPM | A | RPM | A | mN.m / gf.cm | W | A | mN.m / gf.cm | ||||
| RS-550H | 23128R | 6.0~24.0 | 24VDC | 4500 | 0.1 | 3932 | 0.39 | 25.7/262 | 10.6 | 4.8 | 204/2080 |
| 6034 | 6.0~12.0 | 12VDC | 16000 | 1.12 | 13613 | 4.96 | 25.6/261.3 | 40.36 | 48.89 | 281.4/2870 | |
| RS-555H | 3540 | 6.0~12.0 | 12VDC | 7800 | 0.3 | 6708 | 1.84 | 21.9/223.4 | 15.35 | 11.31 | 156/1591 |
| 23100 | 6.0~24.0 | 24VDC | 7000 | 0.14 | 6004 | 0.77 | 19.2/195.8 | 12.09 | 4.2 | 124.5/1270 | |
Recommend Product
Frequently Asked Questions
What voltage configurations are available for these micro DC motors?
Our micro DC motors are designed to operate efficiently across multiple voltage configurations, specifically supporting 6V, 12V, and 24V applications.
Can the physical and technical specifications of the motors be customized?
Yes, we support comprehensive customization for motor specifications, including performance curves and physical attributes, to meet your unique requirements.
Is the length of the motor shaft customizable?
Yes, the shaft length can be fully customized based on your mechanical design and integration constraints.
What are the differences between the RS-550H and RS-555H models?
These models differ in target operating speeds, nominal voltages, torque output, and power ratings as detailed in our PMDC Motor Technical Datasheet.
What applications are these permanent magnet DC (PMDC) motors suitable for?
They are ideally suited for electric cars, model vehicles, miniature robotics, and various high-torque micro DC motor setups.
