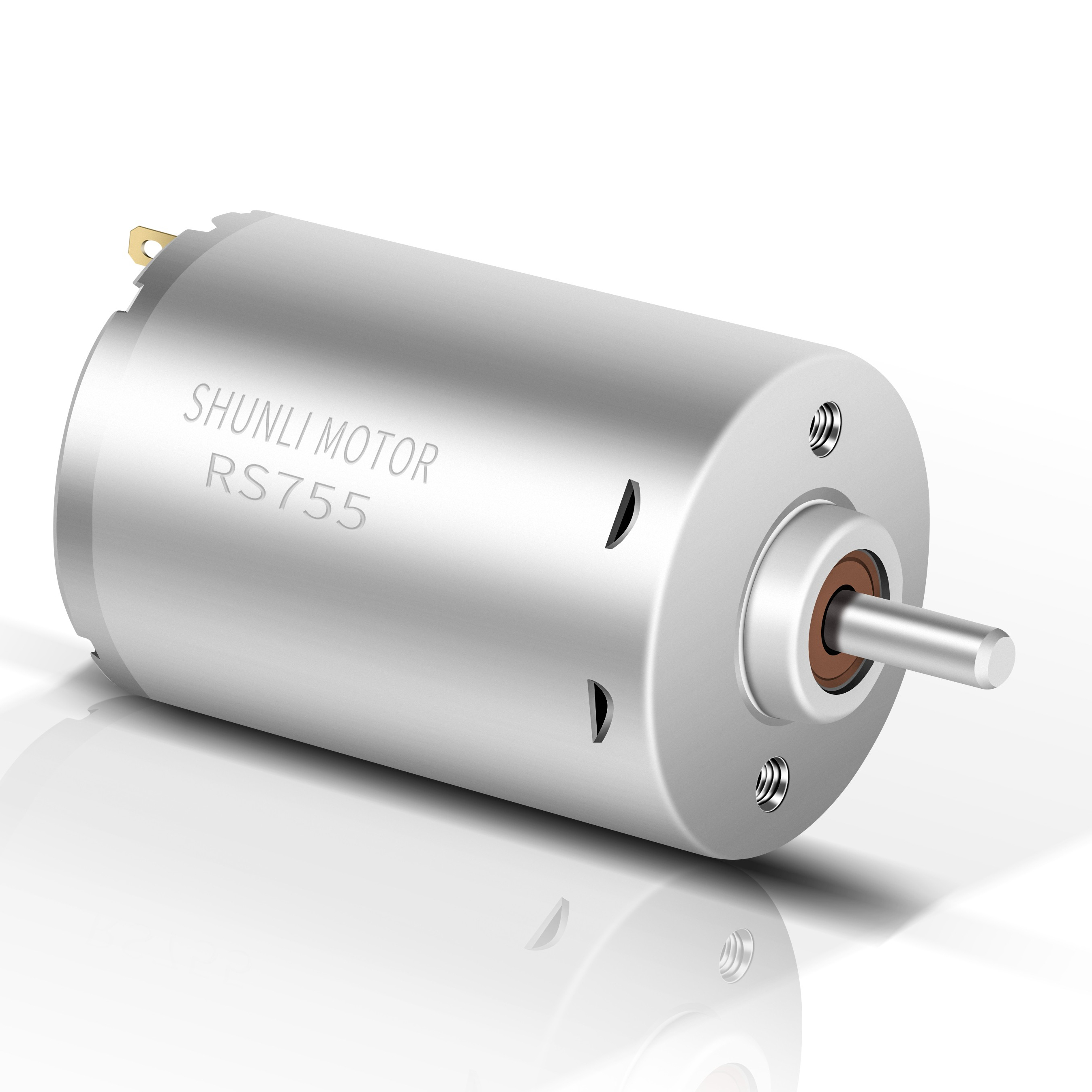

12v 24v 10W 100W DC Motor High Speed 15000 RPM for Air Pump/RC Model/Cordless Power Tool
Product Description
Product Description
12v 24v 10W 100W DC Motor high speed 15000 RPM for Air Pump/RC Model/Cordless Power Tool
Product Details
Motor Customized Specification available.

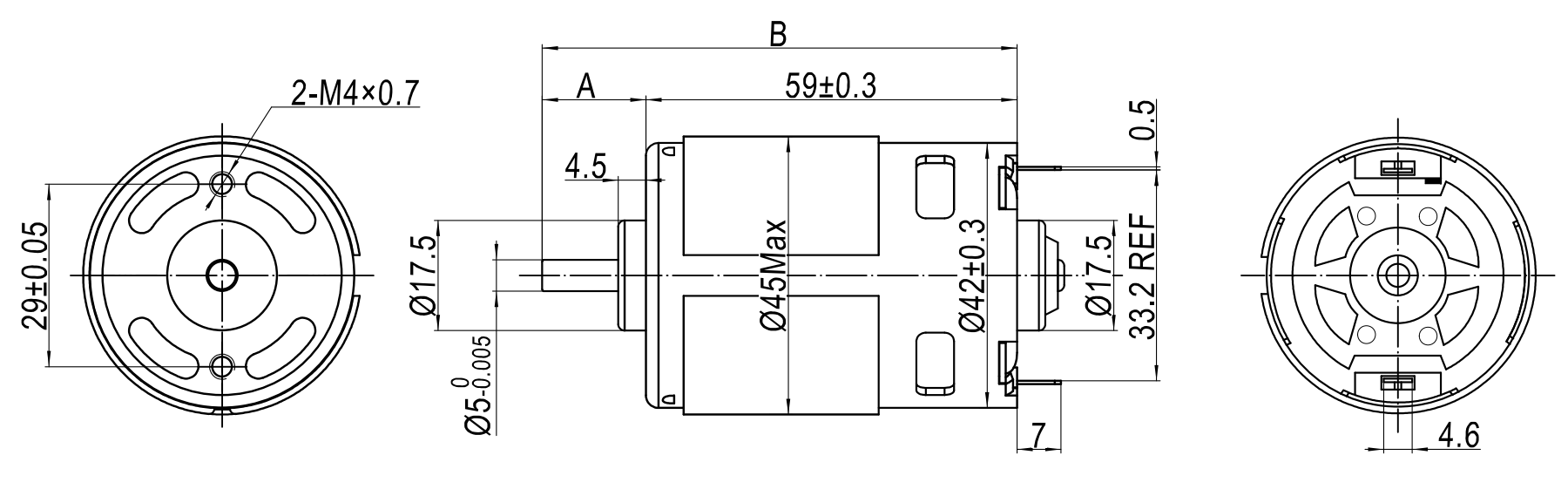

Reference Drawing
RS - 755 H
RS - 775 H
The length of shaft can be customized.
Technical Data
| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| RPM | A | RPM | A | mN.m / gf.cm | W | A | mN.m / gf.cm | ||||
| RS-770H | 8523R | 6.0~12.0 | 12 VDC | 15000 | 2.2 | 13177 | 15.91 | 81/826.2 | 111.8 | 115 | 666.9/6802 |
| RS-775H | 25110R | 6.0~24.0 | 24 VDC | 3478 | 0.15 | 2925 | 0.75 | 44.4/452.9 | 13.35 | 4.07 | 245.7/2506 |
Application
Customer Evaluation
Certifications
Why Choose Us
1. Our Factory Strength
We are a factory specializing in producing motors for more than 14 years, with three factories located in Shenzhen, Huizhou, and Dongguan. A professional R&D team, mature management, and experienced engineering sales team will bring you a pleasant experience.
2. Quality Control
In order to confirm quality, every step from raw material receiving to shipment is carefully checked. Quality is the basis of our development.
3. Our Service
We are a gold seller and in possession of high credibility.
100% on-time delivery rate confirms your product arrives timely.
Samples will be produced within 2 weeks. Customized samples will be produced within 3 weeks.
Timely reply: your message will be replied within 2 hours.
Recommend Product
Frequently Asked Questions
Q1: Are you trading company or manufacturer?
We are a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
Q2: What is the payment term for a new customer?
We can draw up an Online Assurance Order for our new customers, which can be paid online with Master Card, Visa, etc. Customers can also pay with PayPal or TT, etc.
Q3: I can't find a suitable motor on your website, can you customize the motor for me?
Yes, we can customize a suitable motor according to our customer's specific requirements.
Q4: Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, and other certifications. If you have other specific certificate requirements, we can apply for them for you.
Q5: How is your Quality Control?
We have professional checking staff on every production line process. After finishing the assembly, we use testing equipment such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers to verify overall quality.
Q6: Can the motor shaft length and technical specifications be customized?
Yes, we can customize the motor shaft length and performance specifications to match your exact application parameters and design criteria.
