390 Dc Motor for Machine Fan From Shenzhen Supplier 12v 6000rpm Motor
Product Description

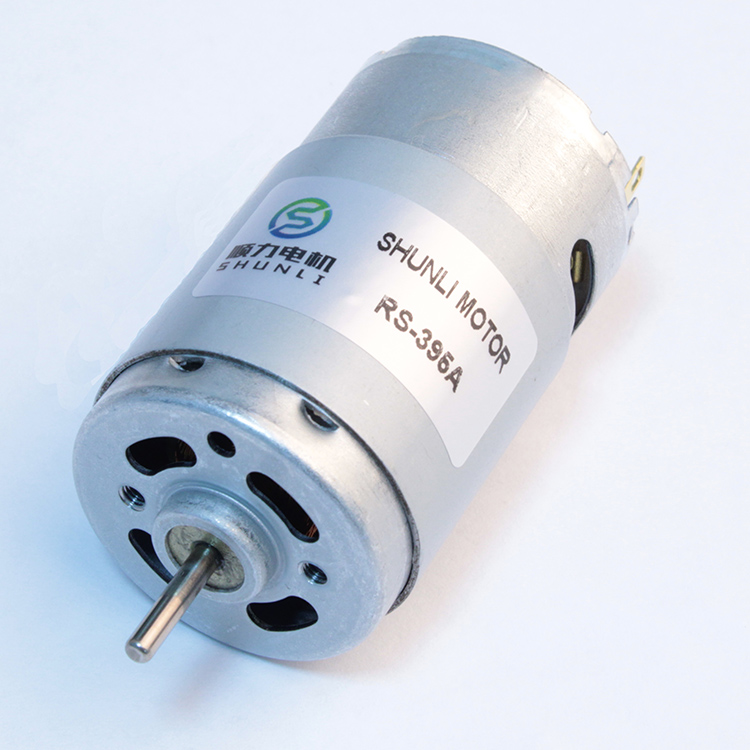

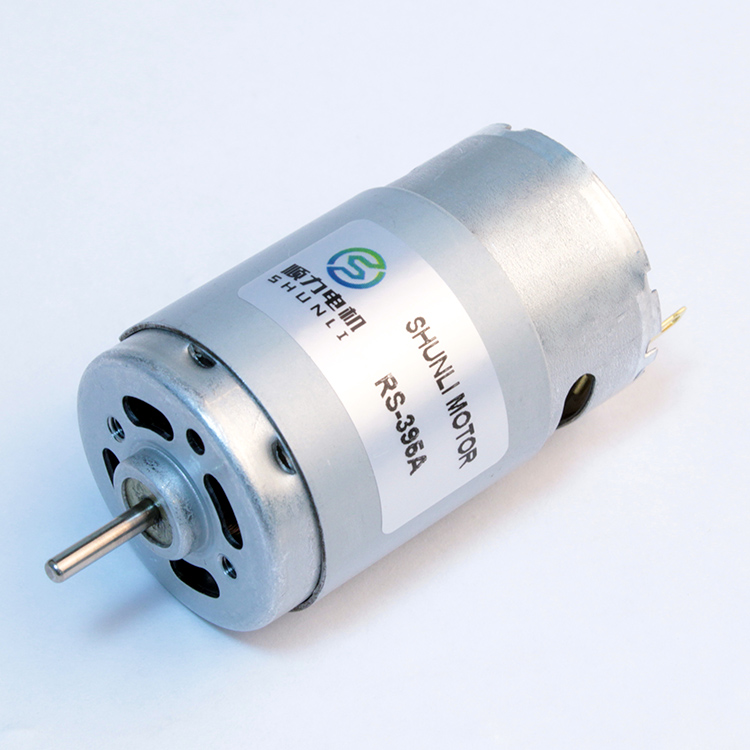

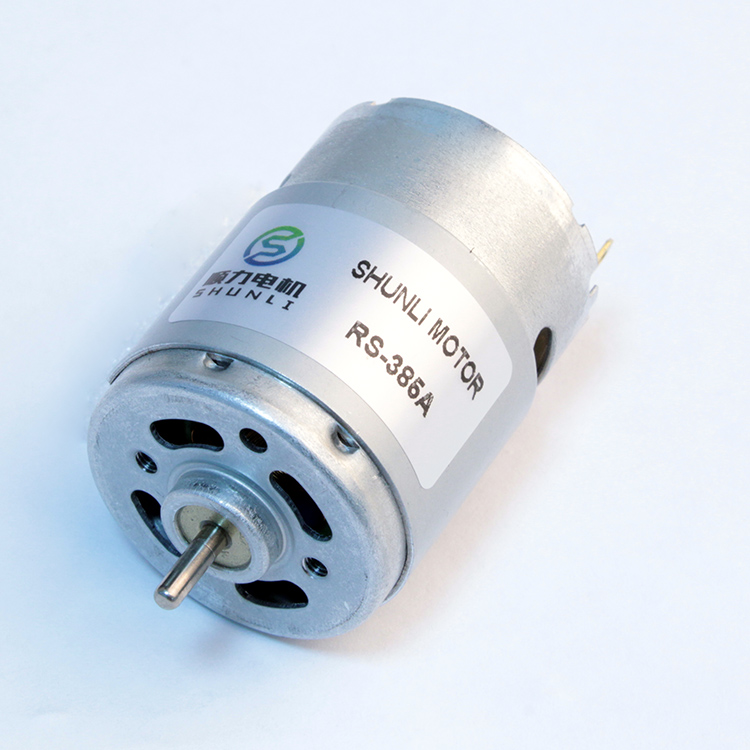

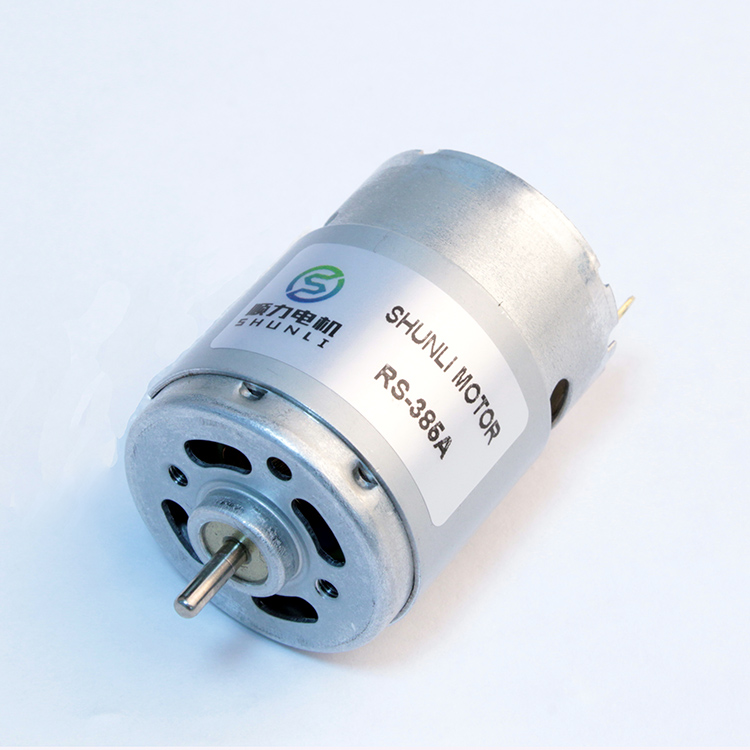

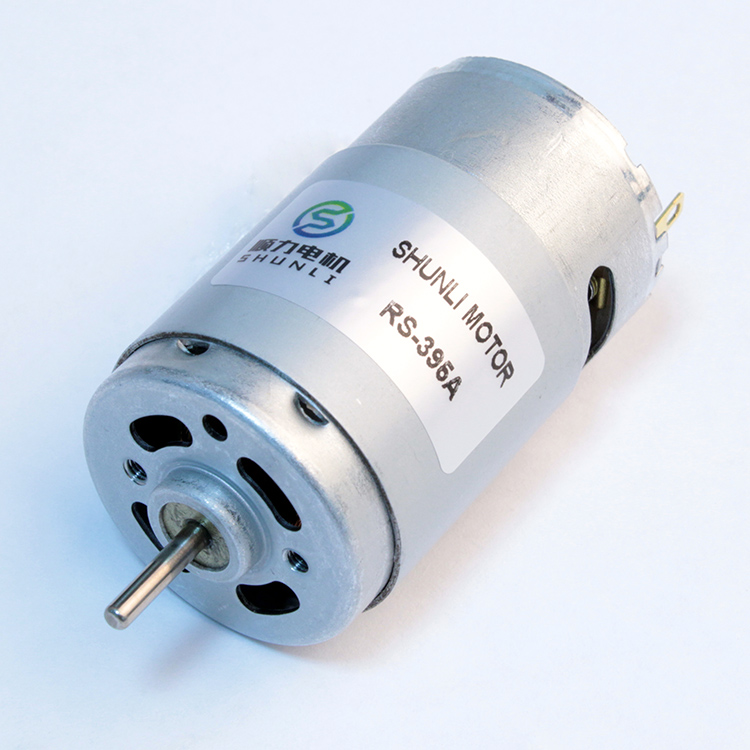

390 DC Motor for Machine Fan 12V 6000RPM Motor
| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| RPM | A | RPM | A | mN.m / gf.cm | W | A | mN.m / gf.cm | ||||
| RS-390SH | 20156R | 6.0~12.0 | 12VDC | 5000 | 0.08 | 4243 | 0.33 | 6.07/61.9 | 2.72 | 2.22 | 42.2/430 |
| 2975 | 6.0~12.0 | 12VDC | 12000 | 0.29 | 10165 | 0.33 | 5.75/58.6 | 1.31 | 8.9 | 80.4/820 | |
| RS-395SH | 15130 | 6.0~12.0 | 12VDC | 3650 | 0.66 | 2949 | 0.25 | 5.83/59.5 | 1.8 | 1.06 | 30.4/310 |
| 15100R | 6.0~24.0 | 24VDC | 10300 | 0.07 | 8893 | 0.38 | 7.09/72.3 | 6.68 | 2.66 | 54.9/560 | |
Frequently Asked Questions
A1: The 390 DC motor is widely utilized in machine fans, personal cooling devices, home appliances, automated equipment, and small-scale mechanical assemblies.
A2: Yes, the shaft length, operating voltage, speed, and overall performance specs can be fully customized to meet your integration requirements.
A3: The RS-390 and RS-395 motors operate within a flexible range typically spanning 6.0V to 24.0V DC, depending on the specific model configuration.
A4: Under a 12VDC nominal load, speed options range from 5000 RPM up to 12000 RPM, depending on the internal winding configuration chosen.
A5: Yes, these motors offer high stall torque outputs, with ratings reaching up to 80.4 mN.m (820 gf.cm) for heavy-duty variants like the RS-390SH 2975.
A6: Yes, detailed mechanical reference drawings for the RS-365, RS-385, and RS-395 models are provided above to assist with product integration.
